Wavin HepvO: Self-sealing Waste Valve for Waterless Drainage

HEPVO

HYGIENIC SELF-SEALING WASTE VALVE

HepvO, manufactured by Mexichem Wavin, is a unique self-sealing waste valve that prevents the escape of foul sewer air from waste discharge systems, and actively maintains the pressure equilibrium in soil and waste installations. As a dry sealing valve, HepvO utilises a purpose designed membrane to create an airtight seal between the living space and the drainage system. The self-sealing valve opens under the water pressure of an appliance emptying, and closes to form a tight seal after the appliance has discharged under normal atmospheric conditions.

AVAILABLE AT YOUR LOCAL MERCHANT

FITTINGS

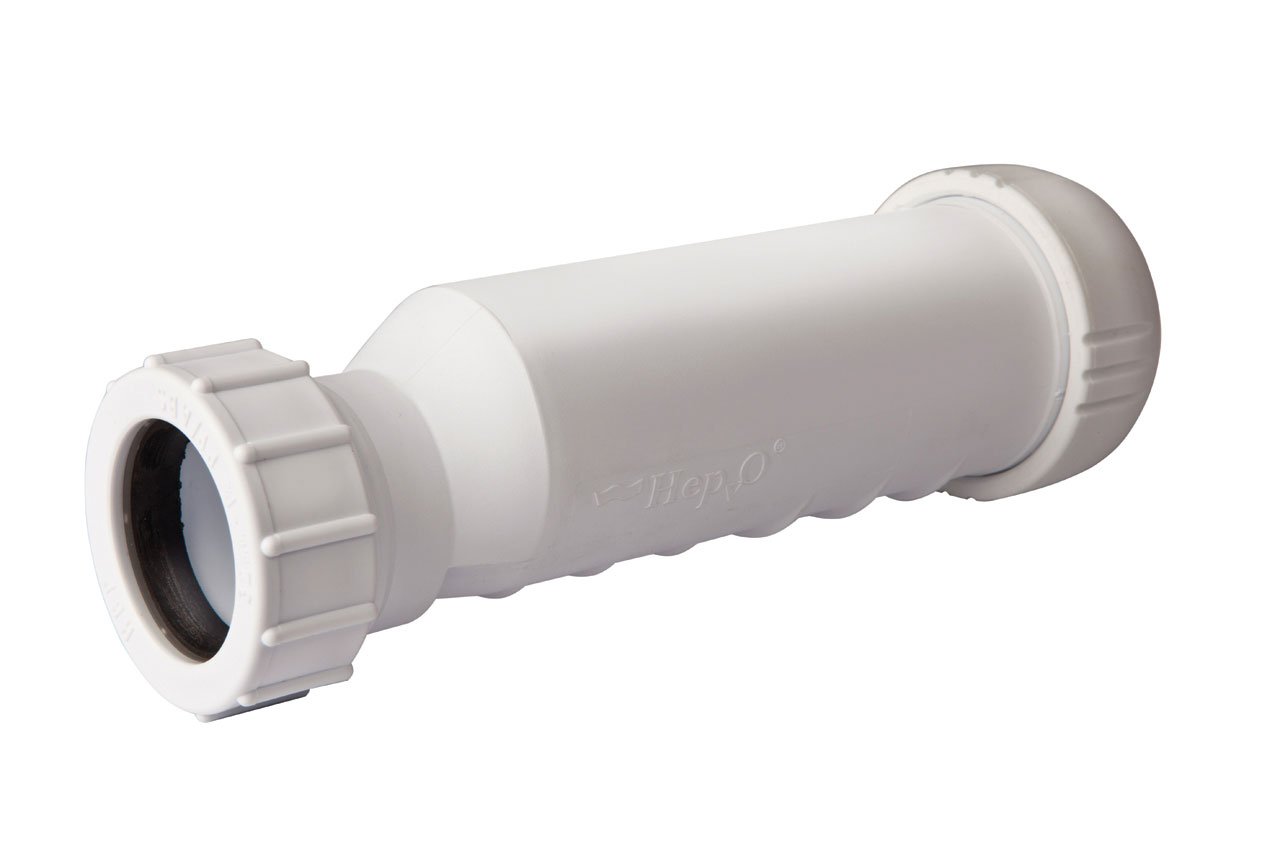

WASTE VALVE

BV1 WH 32mm

CV1 WH 40mm

RUNNING ADAPTOR

BV3 WH 32mm

CV3 WH 40mm

CV4 WH 50mm - 40mm

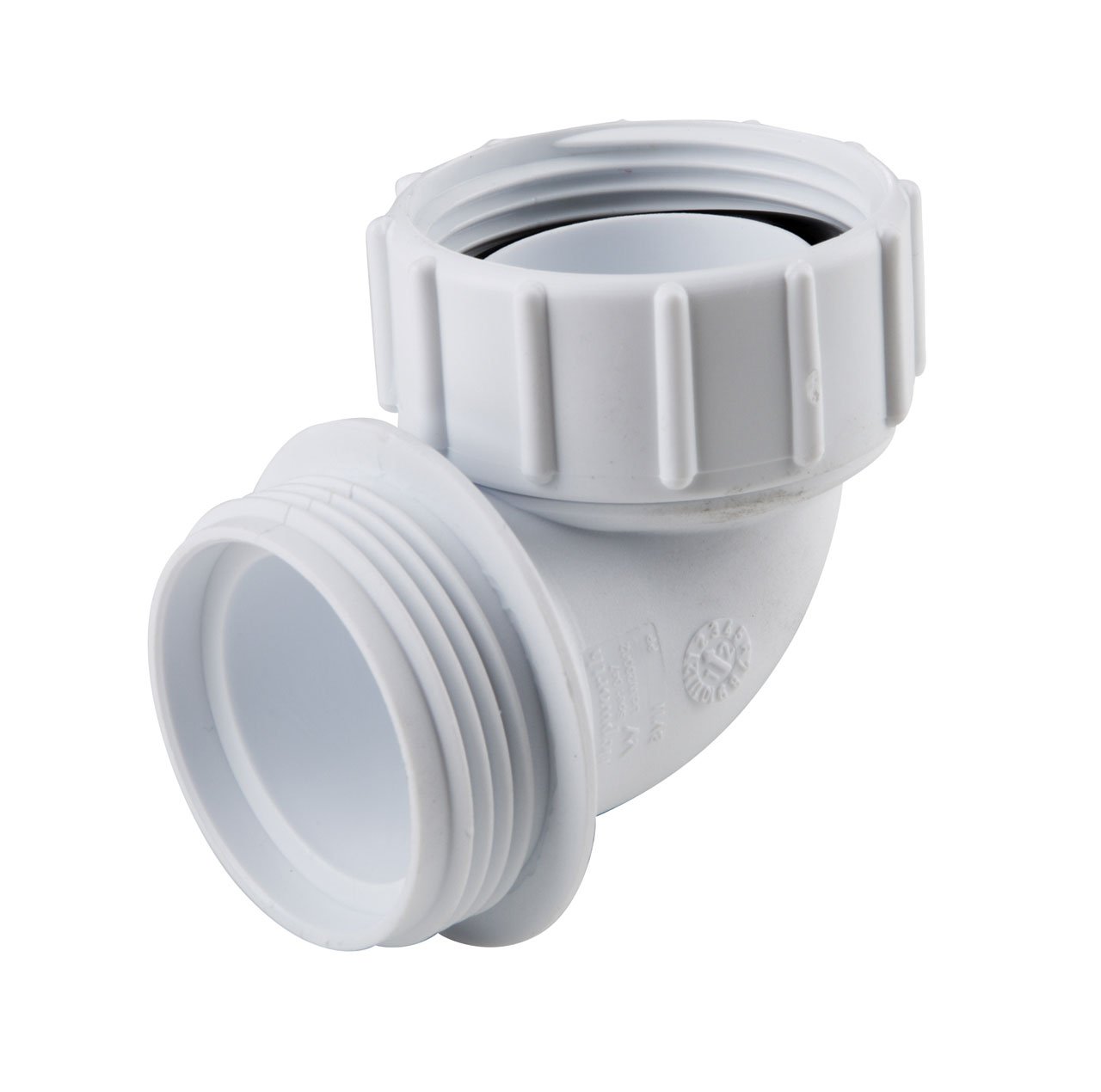

KNUCKLE BEND

BV11 WH 32mm

CV11 WH 40mm

KEY FEATURES AND BENEFITS

Saves space - piping can be installed in a straight line or at a neat 90° angle from the fixture’s outlet.
Prevents odours escaping - the elastomeric one-way membrane of the valve opens to allow wastewater through then closes, forming a tight seal to stop odours re-entering the room.
Hygienic - Because it’s water free, the HepVO valve does not promote the build-up of waste materials which can cause bacteria.
Tested and approved - rigorously tested for most conditions. HepVO carries the Watermark Licence WMKT20062.
Reliable and effective - prevents sewer gases re-entering your home in situations where water seals are weak.
Greater design flexibility - designers don’t have to work to safety margins required to avoid the possible loss of a water seal.
